Counting Paths in Neo4j and Cypher

graph neo4j

Table of Contents

Imagine we're given a grid of size counting_paths_in_neo4j_and_cypher_a554226b469f8766258968420df2fda38923be6b.svg , with rectangular obstacles placed on it.

Starting from the bottom-left cell and only moving right or up onto cells not occupied by an obstacle, how many different paths are there to the top-right cell?

Representing the Grid

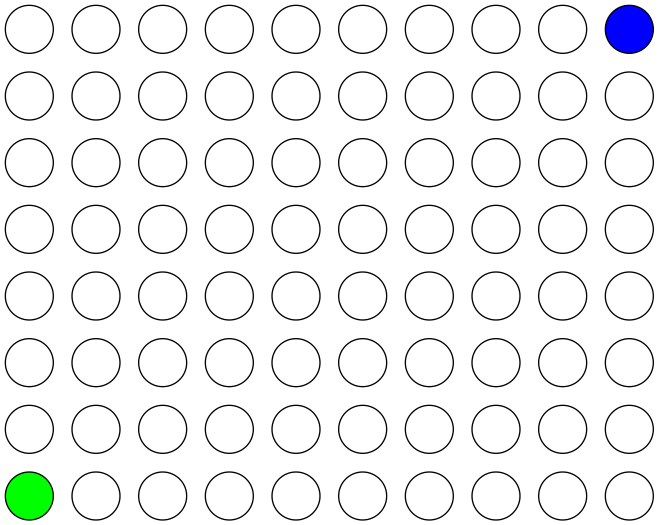

We will represent each cell of this grid as a nodes with properties to encode its positions:

UNWIND range(1, $width) AS x
UNWIND range(1, $height) AS y
CREATE (:Cell {x: x, y: y})

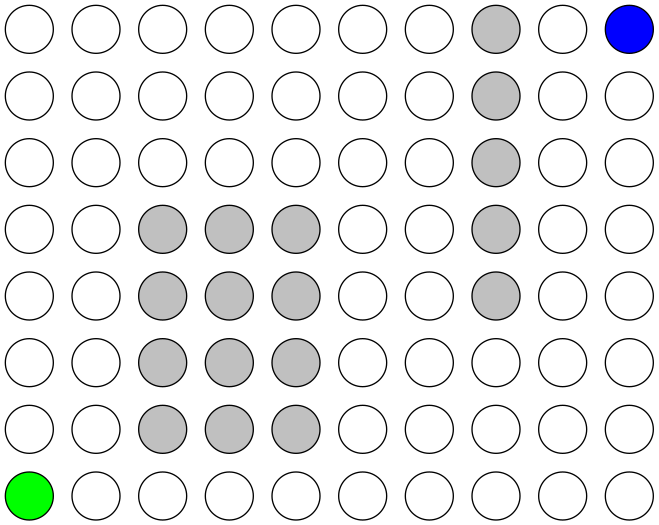

Cells blocked by an obstacle get an additional Blocked label. We'll describe each obstacle by the ranges of X and Y coordinates it covers:

UNWIND range($x0, $x1) AS x
UNWIND range($y0, $y1) AS y
MATCH (c {x: x, y: y})
SET c:Blocked

To model movement between nodes, we'll add relationships between each unblocked node and its unblocked neighbors to the right and above.

MATCH (c1:!Blocked), (c2:!Blocked)
WHERE
  (c2.x = c1.x AND c2.y = c1.y + 1) OR
  (c2.y = c1.y AND c2.x = c1.x + 1)
CREATE (c1)-[:HAS_PATH]->(c2)

Counting Paths

One way to count the paths is to query all possible paths from the source to the target node:

MATCH ({x: 1, y: 1})-[r:HAS_PATH*]->({x: $width, y: $height})
RETURN count(r) AS pathCount

This will be very slow for most large grids.

A faster method is to attach a new pathCount property to nodes (initially NULL ) and compute it step-by-step. We'll set it to 1 for the node we start at:

MATCH (c {x: 1, y: 1}) SET c.pathCount = 1

Each unblocked node can be reached either from the below or from the left, so the pathCount of this node will be the sum of the path counts these neighboring nodes, if those have already been computed:

MATCH (c1)-->(c2)
WITH c2, collect(c1) AS incoming, sum(c1.pathCount) AS pathCount
WHERE ALL(i IN incoming WHERE i.pathCount IS NOT NULL)
SET c2.pathCount = pathCount

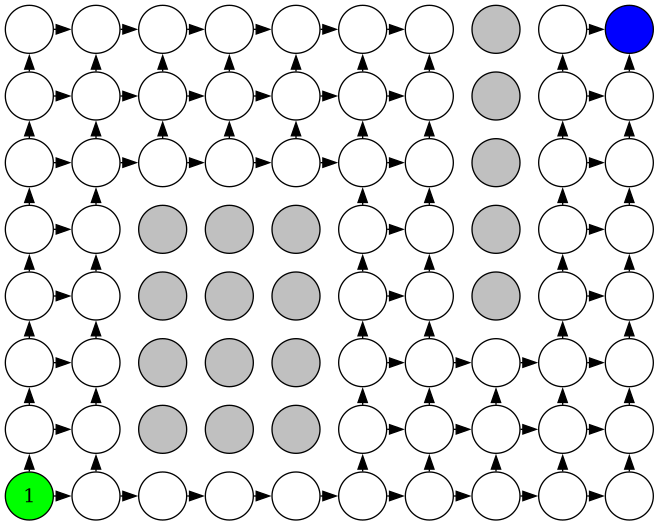

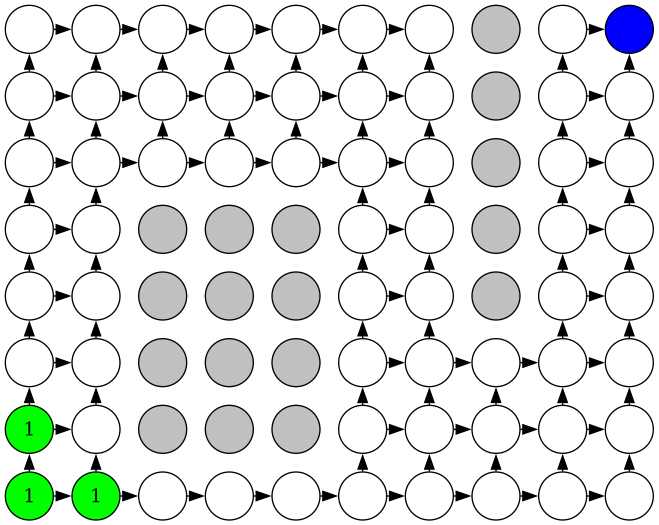

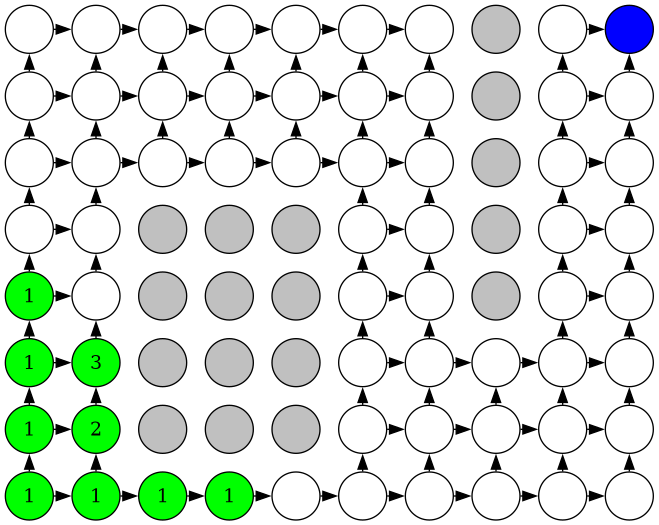

After running this query two more times, the graph looks like this:


Now we run into a problem: Cypher is a declarative query language and (to my understanding) doesn't natively support running a query in a loop while accessing data written to the graph in the previous iteration. More precisely, UNWIND and similar constructs run in a single database transaction.

One way to work around this is to use apoc.cypher.doIt from the apoc library:

UNWIND range(1, $steps) AS i
CALL apoc.cypher.doIt(
  "
  MATCH (c1)-->(c2)
  WITH c2, collect(c1) AS incoming, sum(c1.pathCount) AS pathCount
  WHERE ALL(i IN incoming WHERE i.pathCount IS NOT NULL)
  SET c2.pathCount = pathCount
  ",
  {}
) YIELD value

This will YIELD and RETURN some intermediate values, which we can ignore.

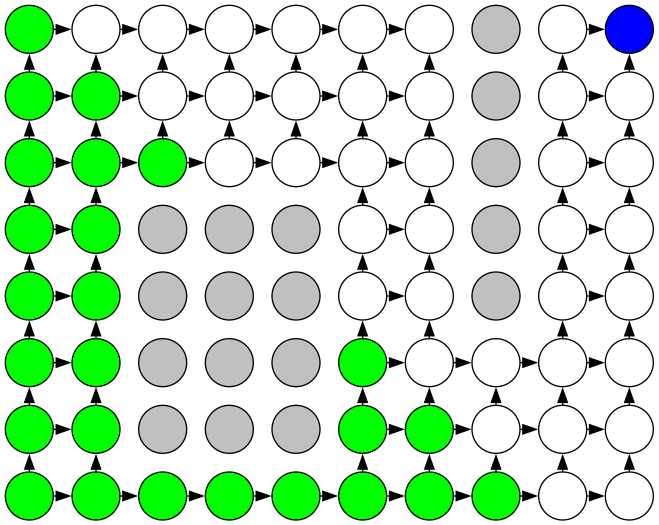

Note: the path counts of each node will not be shown in the remaining images to avoid layout issues.

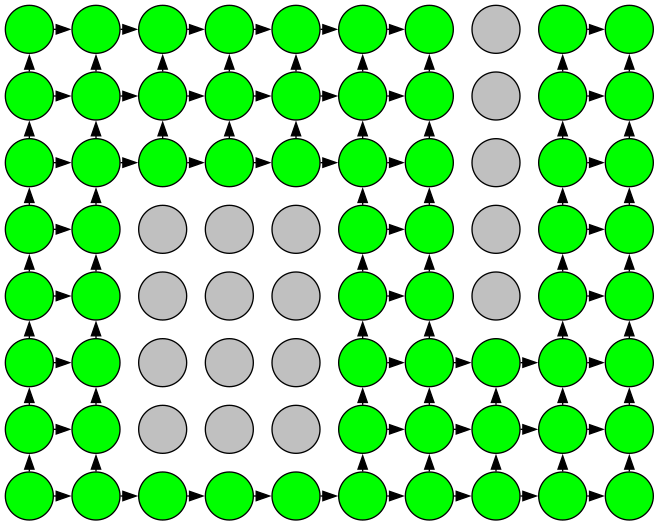

After repeating the query steps = width + height - 2 times, the result can be read out from the pathCount property of the target node. Proving why this is true is left as an exercise for the reader.


This approach should generalize to all acyclic graphs and can be extended to perform different kinds of computation on the nodes.
